TELD Group
Charging Systems

Centralised Power.
Multiple Charging Points.

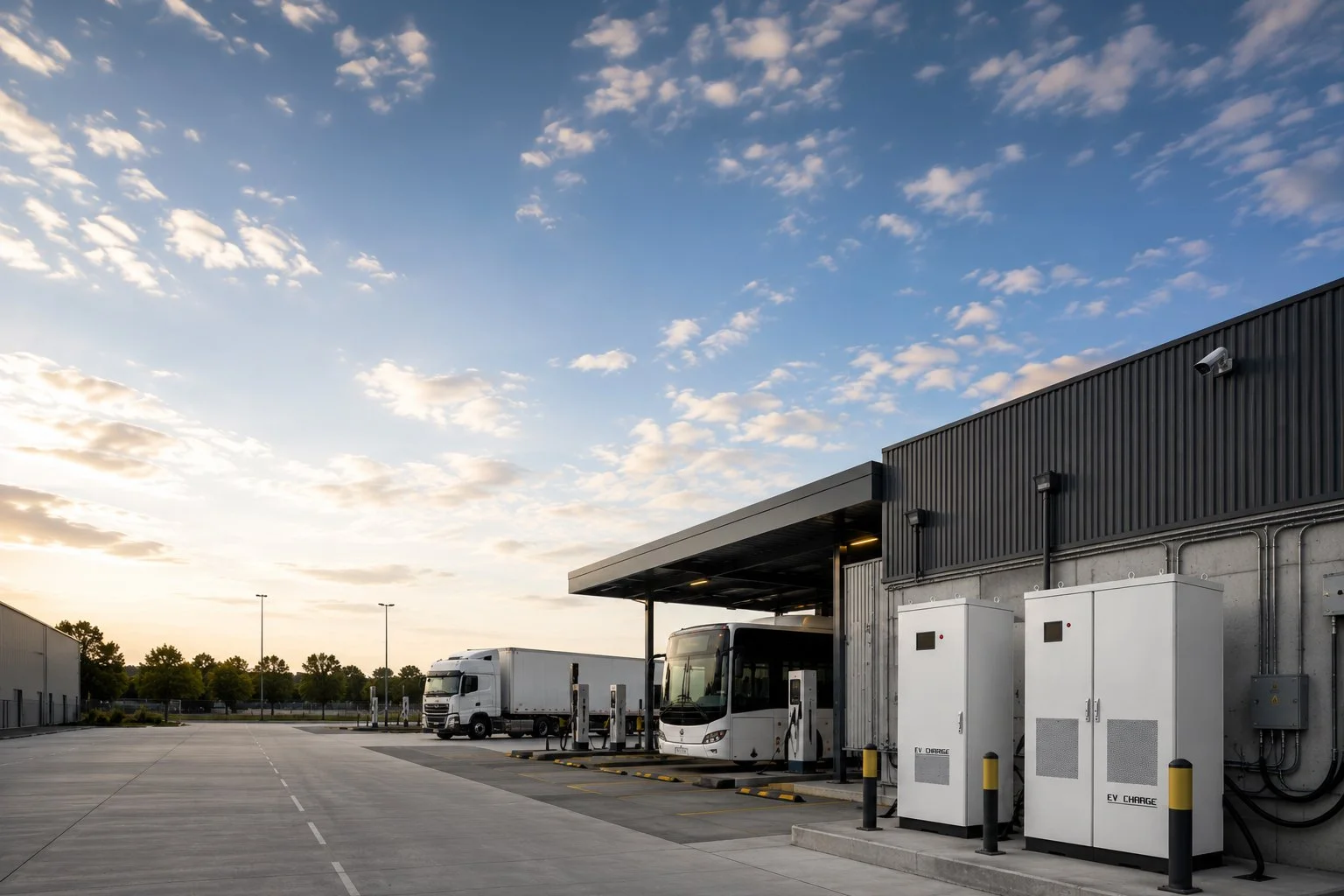

TELD group charging systems bring multiple charging points together into a shared power network, allowing charging power to be dynamically scheduled and distributed across different vehicles and charging bays.

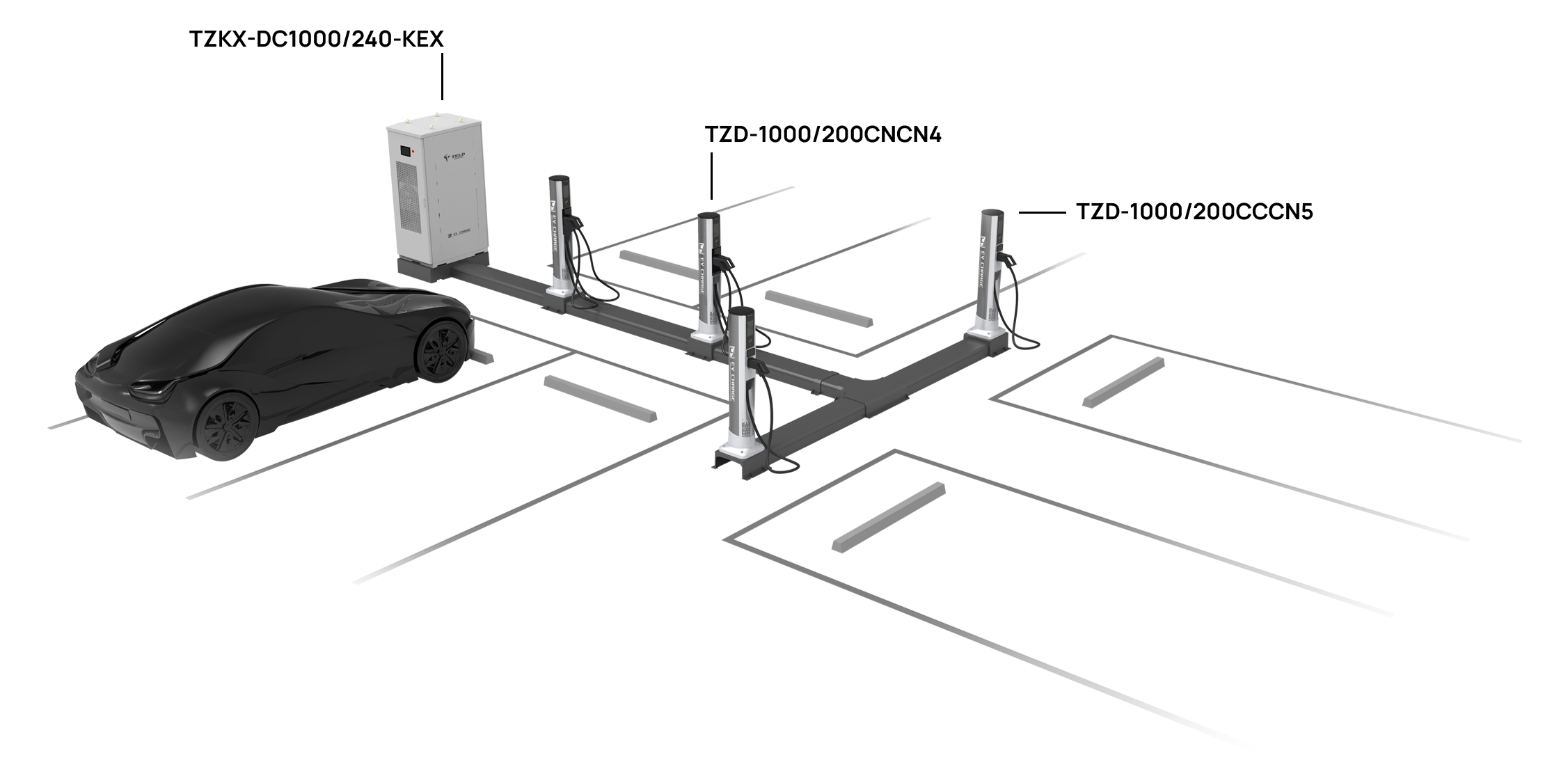

At the centre of the system, the power cabinet manages the main power supply and distributes available charging capacity to connected charging terminals. This allows large-scale sites to support multiple vehicles from a coordinated charging system, rather than relying on each charging point as a completely separate standalone unit.

Designed for high-demand charging environments, the system supports flexible power allocation, wide vehicle compatibility and reliable charging for fleets, public transport, logistics, industrial operations and commercial sites.

Group Charging Options

TELD TZKX-DC1000/240-KEX

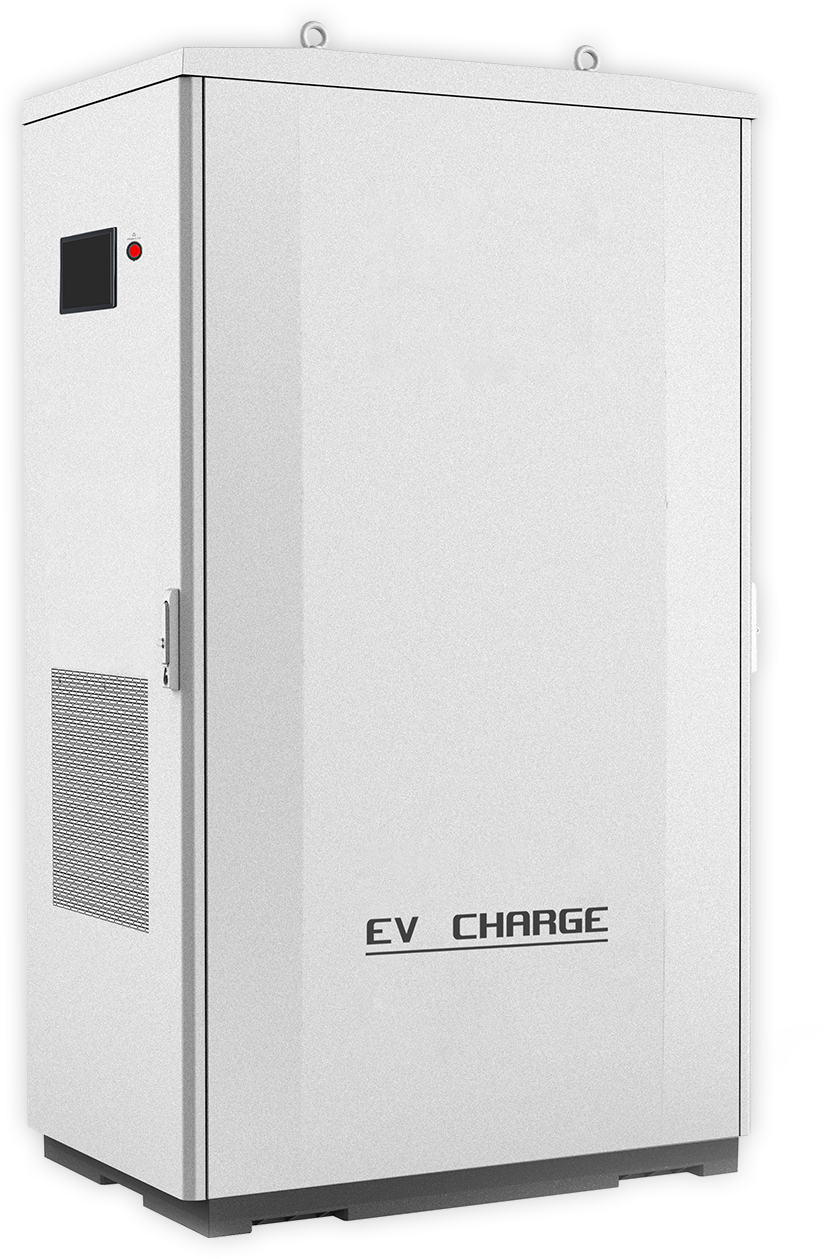

The TELD TZKX-DC1000/240-KEX is a 240kW power cabinet designed as the core unit within a TELD group charging system, integrating charging modules, charging control and communication functions into a coordinated power platform for large-scale EV charging environments. Designed to work with compatible CCS and GB/T charging dispensers, it supports intelligent power distribution across connected charging points for public service, public transport, workplace, industrial/logistics fleet and e-bus charging stations.

  • 240kW power cabinet

  • Core unit of TELD group charging system

  • Integrated charging modules, charging control and communication functions

  • Intelligent power distribution

  • Compatible with CCS and GB/T charging dispensers

  • OCPP 1.6J platform support

  • 4G / Ethernet / LAN communication

  • Pluggable modular design

  • Supports remote upgrade

  • Supports capacity expansion with parallel-connected power distribution units

  • Ultra-wide voltage output covering a wide range of vehicles

  • Intelligent noise reduction technology

    Type: TZKX-DC1000/240-KEX
    Rated Power: 240kW
    Power Supply: 3P+N+PE
    Input Voltage: 400Vac ±10%
    Output Voltage: 50Vdc–1000Vdc
    Output Channels: 6 × 400A
    Display: 8” LCD screen
    Communication: 4G/Ethernet/LAN, optional Wi-Fi
    Platform Protocol: OCPP 1.6J
    Peak Efficiency: ≥95%
    IP Rating: IP54
    Cooling: Air cooling
    Dimensions: 770 × 1040 × 1835mm

    CLICK TO VIEW FULL TECH SHEET

TELD TZKX-DC1000/480-KEX

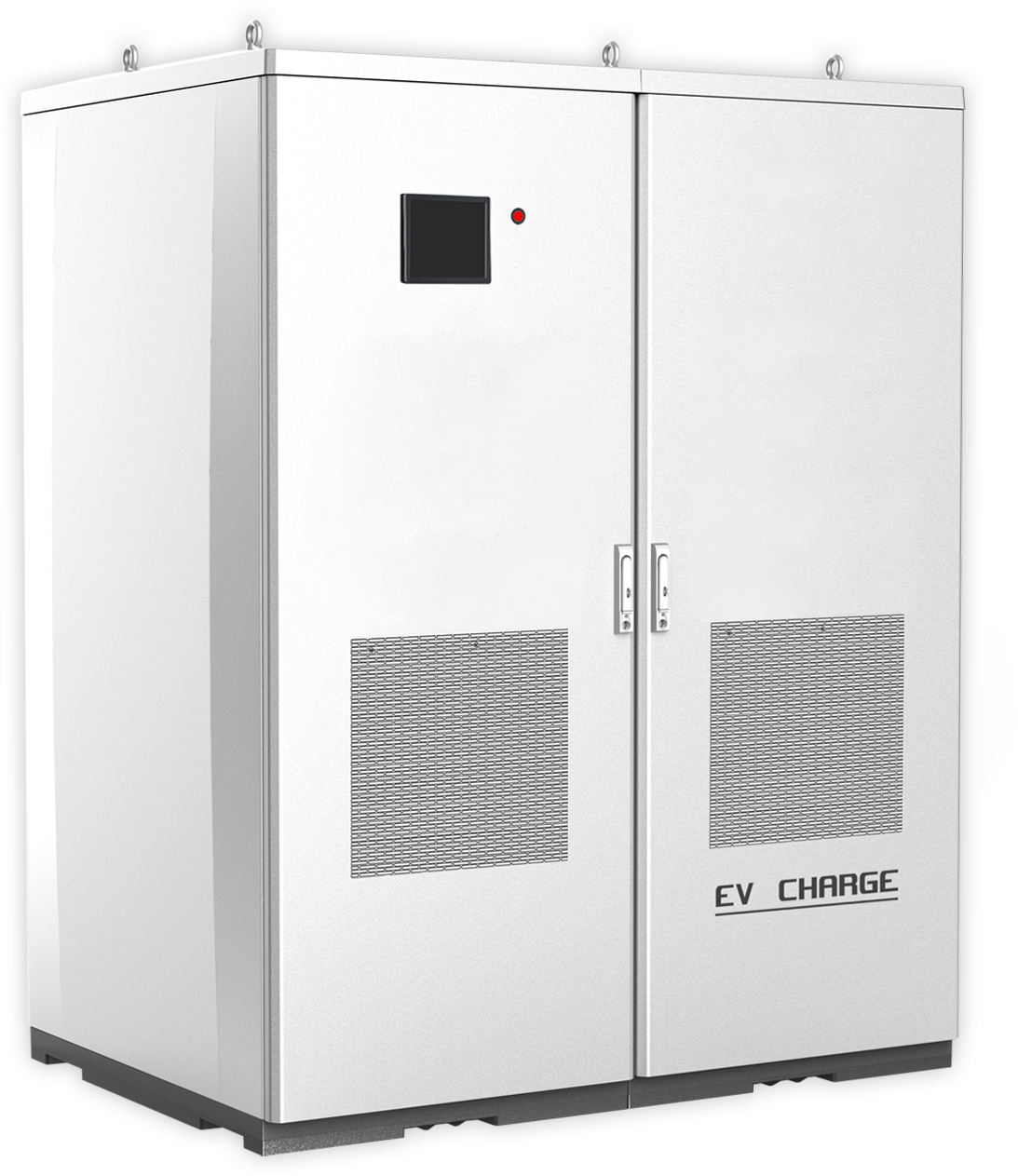

The TELD TZKX-DC1000/480-KEX is a 480kW power cabinet built for TELD group charging system applications, serving as the central power platform for larger EV charging environments. By combining charging modules, charging control and communication functions, it works with compatible CCS and GB/T charging dispensers to support intelligent power distribution across connected charging points, including public service, public transport, workplace, industrial/logistics fleet and e-bus charging stations.

240kW power cabinet
Core unit of TELD group charging system
Integrated charging modules, charging control and communication functions
Intelligent power distribution
Compatible with CCS and GB/T charging dispensers
OCPP 1.6J platform support
4G / Ethernet / LAN communication
Pluggable modular design
Supports remote upgrade
Supports capacity expansion with parallel-connected power distribution units
Ultra-wide voltage output covering a wide range of vehicles
Intelligent noise reduction technology

Type: TZKX-DC1000/480-KEX
Rated Power: 480kW
Power Supply: 3P+N+PE
Input Voltage: 400Vac ±10%
Output Voltage: 50Vdc–1000Vdc
Output Channels: 12 × 400A
Display: 8” LCD screen
Communication: 4G/Ethernet/LAN, optional Wi-Fi
Platform Protocol: OCPP 1.6J
Peak Efficiency: ≥95%
IP Rating: IP54
Cooling: Air cooling
Dimensions: 1440 × 1040 × 1835mm

CLICK TO VIEW FULL TECH SHEET

The products shown here represent selected TELD EV charging solutions available through YUBRIDGE. Additional models and configurations may be available
depending on your site requirements. Contact us to discuss your project or request more product information.
