TELD Commercial EV Charging
Smart charging solutions for workplaces,
car parks and commercial sites.
TCDZ-AC
TZD-1000
TEC-DC1.0
TCDZ-DC1000
TEC-DC1.0
Select a product above to view specifications and details

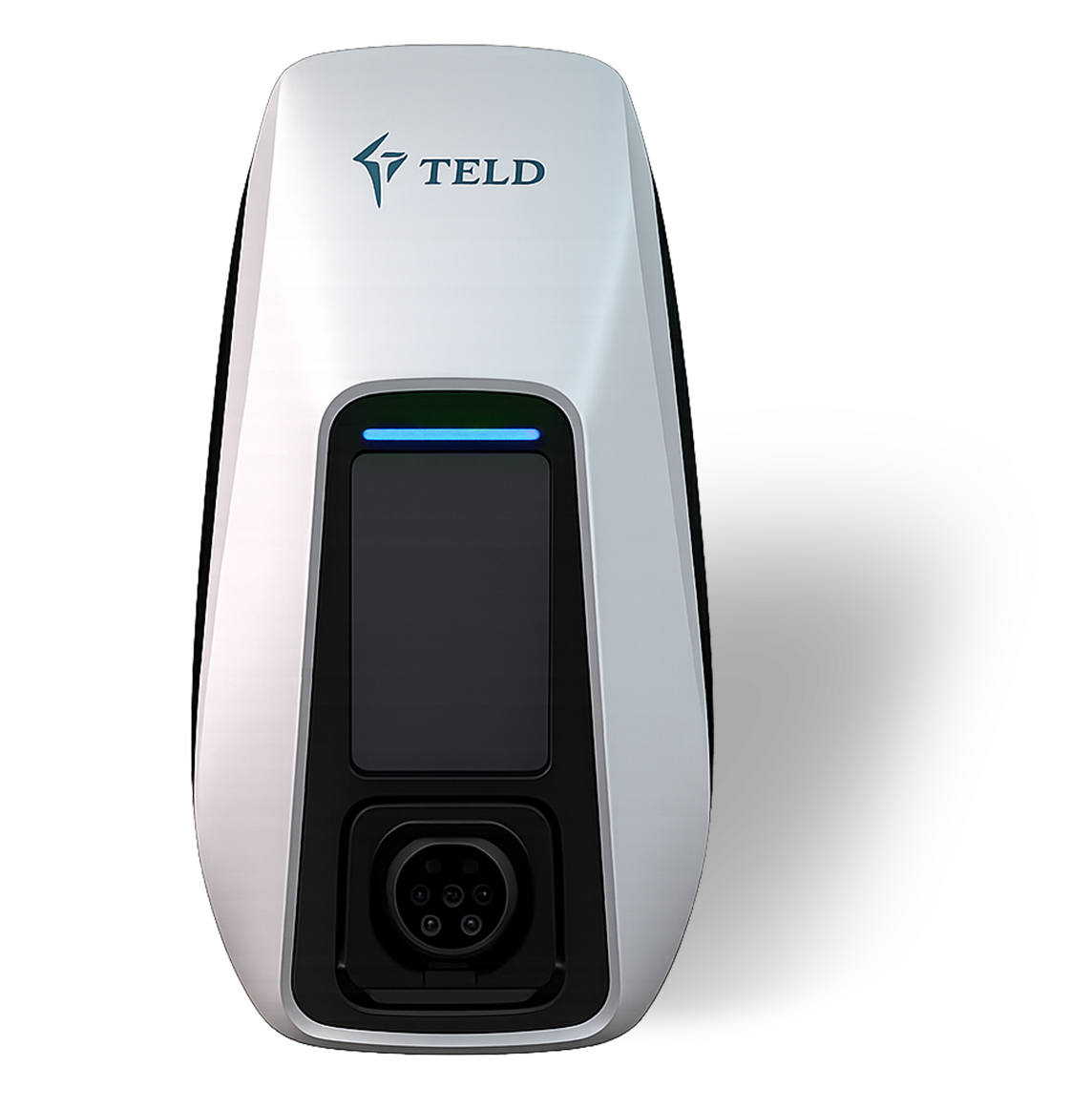

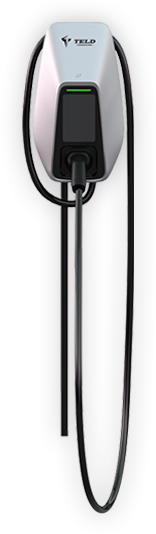

TELD TCDZ-AC230/7-KCEMCA
App control & charging monitoring
4G/Bluetooth/Wi-Fi/Ethernet connectivity
APP/RFID/plug-and-play start modes
Charging reservation/scheduled charging
OCPP 1.6J support
MID energy metering
Optional 4.3” display
Single-phase commercial installation
Suited For
Commercial properties, office buildings, hotels, shopping centres, real estate developments and lower-demand commercial parking areas where single-phase power is suitable.
Rated Power: 7kW
Power Supply: 1P+N+PE
Rated Voltage: 230Vac ±20%
Rated Current: 32A
Connector: Type 2 Case C
Cable Length: 5m
IP Rating: IP65
IK Rating: IK10
Installation: Wall-mounting or floor-mounting
CLICK TO VIEW FULL TECH SHEET
CLICK TO VIEW 11kW MODEL
CLICK TO VIEW 22kW MODEL

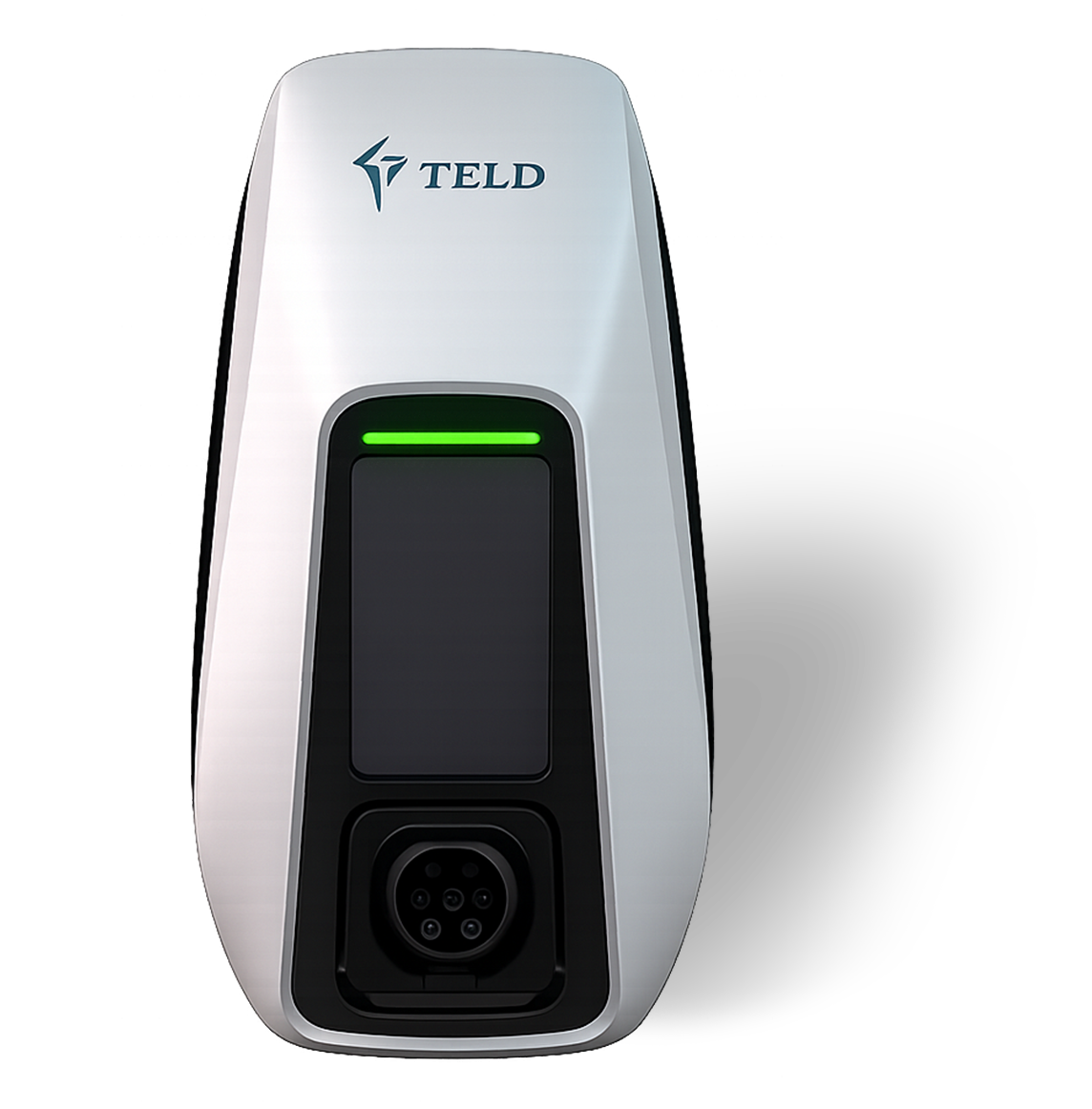

TELD TCDZ-AC400/11-KCEMCA
App control & charging monitoring
4G/Bluetooth/Wi-Fi/Ethernet connectivity
APP/RFID/plug-and-play start modes
Charging reservation/scheduled charging
OCPP 1.6J support
MID energy metering
Optional 4.3” display
Three-phase commercial installation
Suited For
Commercial properties, office buildings, hotels, shopping centres, real estate developments and commercial parking areas where three-phase power is available.
Rated Power: 11kW
Power Supply: 3P+N+PE
Rated Voltage: 400Vac ±20%
Rated Current: 16A
Connector: Type 2 Case C
Cable Length: 5m
IP Rating: IP65
IK Rating: IK10
Installation: Wall-mounting or floor-mounting
CLICK TO VIEW FULL TECH SHEET
CLICK TO VIEW 7kW MODEL
CLICK TO VIEW 22kW MODEL
TELD TCDZ-AC400/22-KCEMCA
App control & charging monitoring
4G/Bluetooth/Wi-Fi/Ethernet connectivity
APP/RFID/plug-and-play start modes
Charging reservation/scheduled charging
OCPP 1.6J support
MID energy metering
Optional 4.3” display
Three-phase commercial installation
Suited For
Commercial properties, office buildings, hotels, shopping centres, real estate developments and higher-demand commercial parking areas where compatible three-phase power is available.
Rated Power: 22kW
Power Supply: 3P+N+PE
Rated Voltage: 400Vac ±20%
Rated Current: 32A
Connector: Type 2 Case C
Cable Length: 5m
IP Rating: IP65
IK Rating: IK10
Installation: Wall-mounting or floor-mounting
CLICK TO VIEW FULL TECH SHEET
CLICK TO VIEW 7kW MODEL
CLICK TO VIEW 11kW MODEL

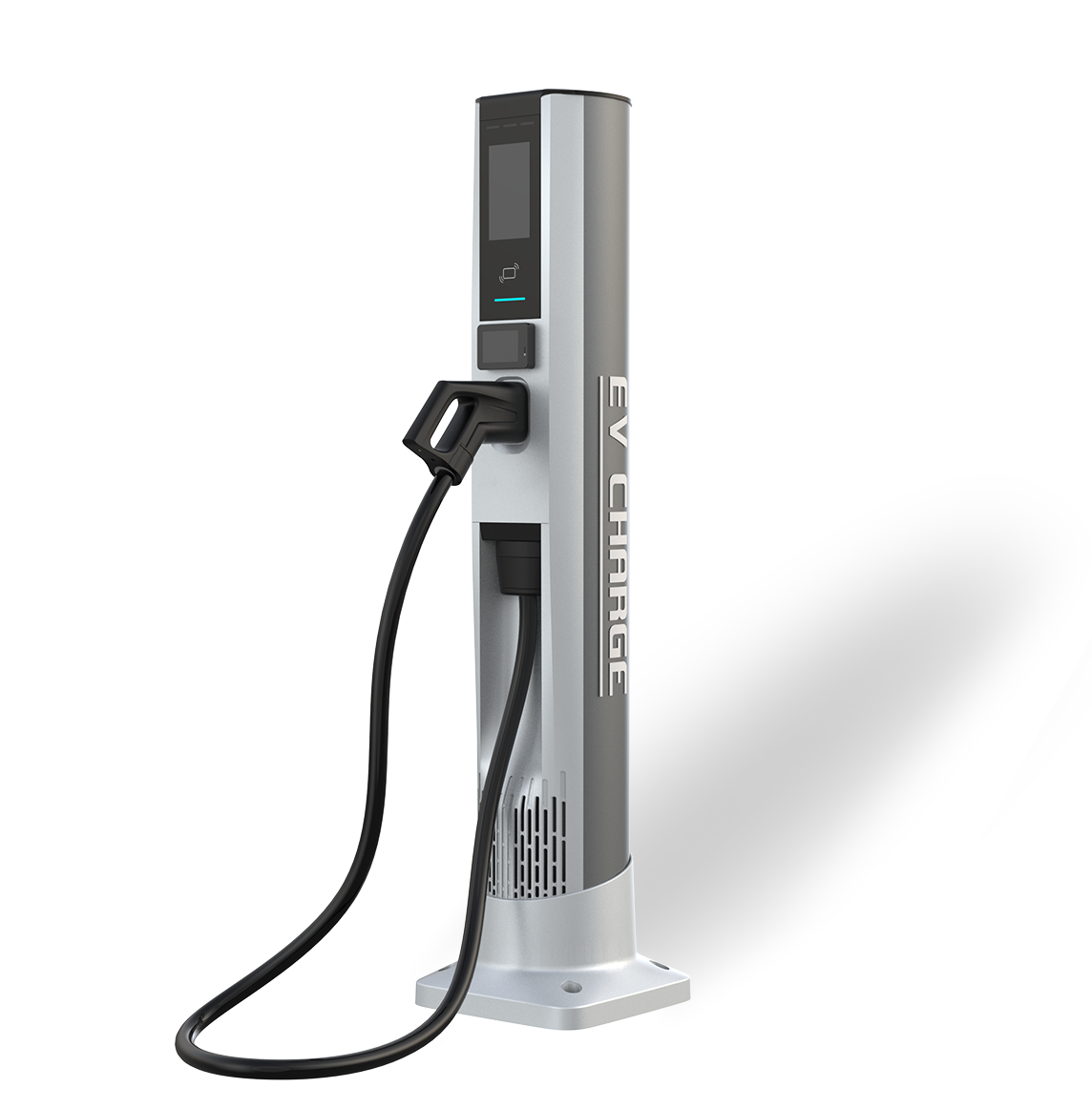

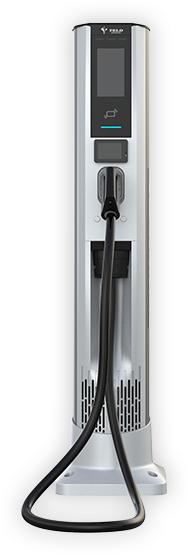

TELD TZD-1000/200CNCN4
Floor-mounted DC charging dispenser
Single CCS2 charging connector
Designed for use with TELD power cabinet
Ultra-wide 50Vdc–1000Vdc output voltage range
0kW–250kW output power
200A maximum current, with 250A optional
APP/RFID/screen/POS start modes
7” LCD screen
Suited For
Group charging systems where a single CCS2 DC charging interface is required, combined with a TELD power cabinet to provide fast charging access for electric vehicles.
Rated Output Power: 0kW–250kW
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 200A, 250A optional
Connector: CCS2 × 1
Cable Length: 4m
Display: 7” LCD screen
Starting Mode: APP / RFID / Screen / POS
IP Rating: IP54
Cooling: Natural cooling
CLICK TO VIEW FULL TECH SHEET

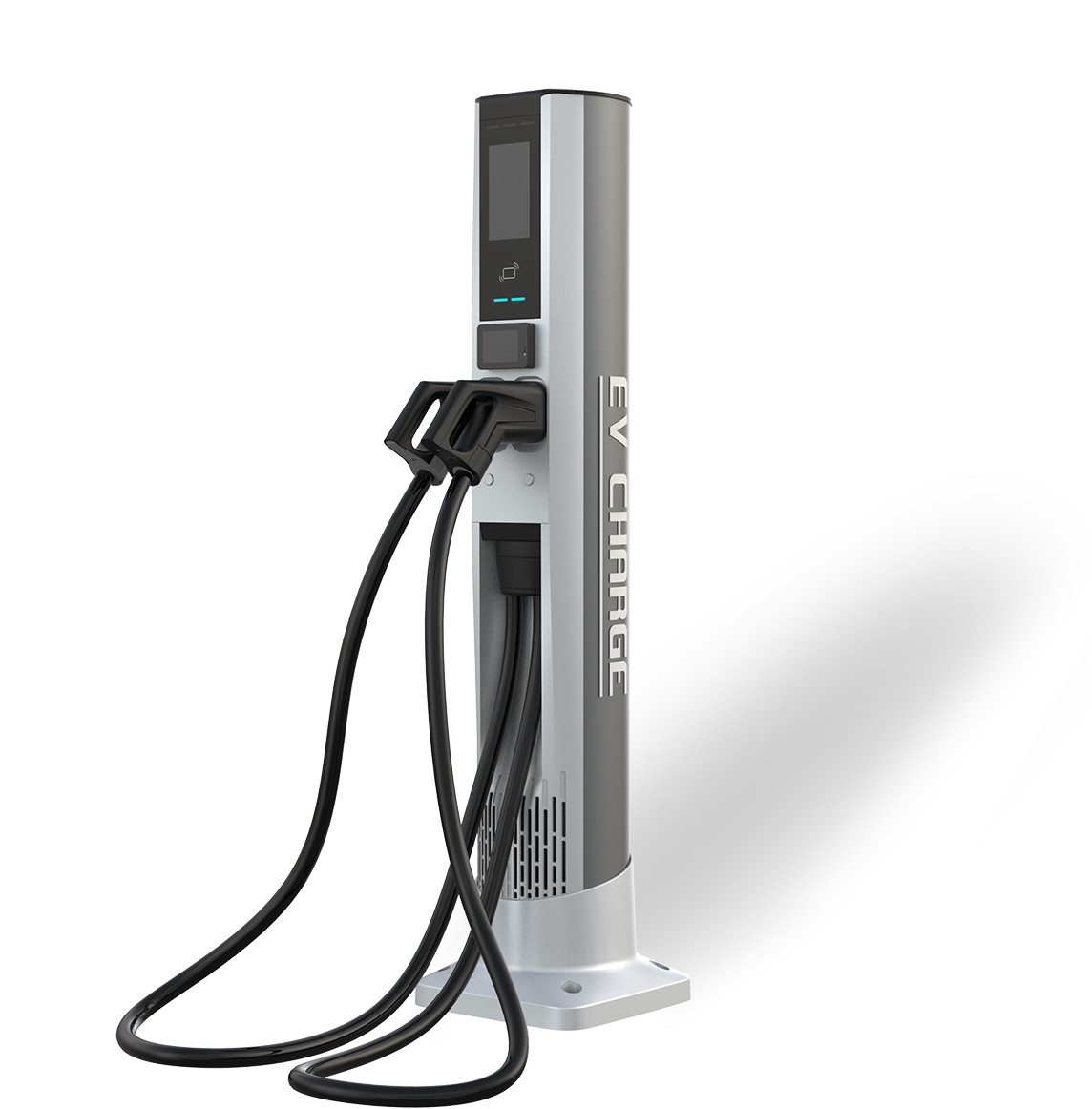

TELD TZD-1000/200CCCN5
Floor-mounted DC charging dispenser
Dual CCS2 charging connectors
Designed for use with TELD power cabinet
Ultra-wide 50Vdc–1000Vdc output voltage range
0kW–200kW output power
200A maximum current
APP/RFID/screen/POS start modes
7” LCD screen
Suited For
Group charging systems where dual CCS2 DC charging interfaces are required, combined with a TELD power cabinet to provide fast charging access for electric vehicles.
Rated Output Power: 0kW–200kW
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 200A
Connector: CCS2 × 2
Cable Length: 5m
Display: 7” LCD screen
Starting Mode: APP / RFID / Screen / POS
IP Rating: IP54
Cooling: Natural cooling
CLICK TO VIEW FULL TECH SHEET
CLICK TO VIEW SINGLE CCS2

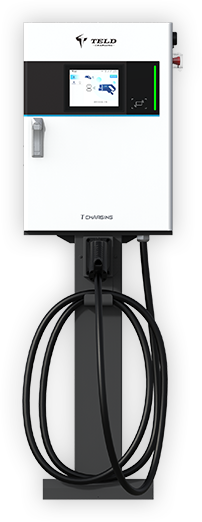

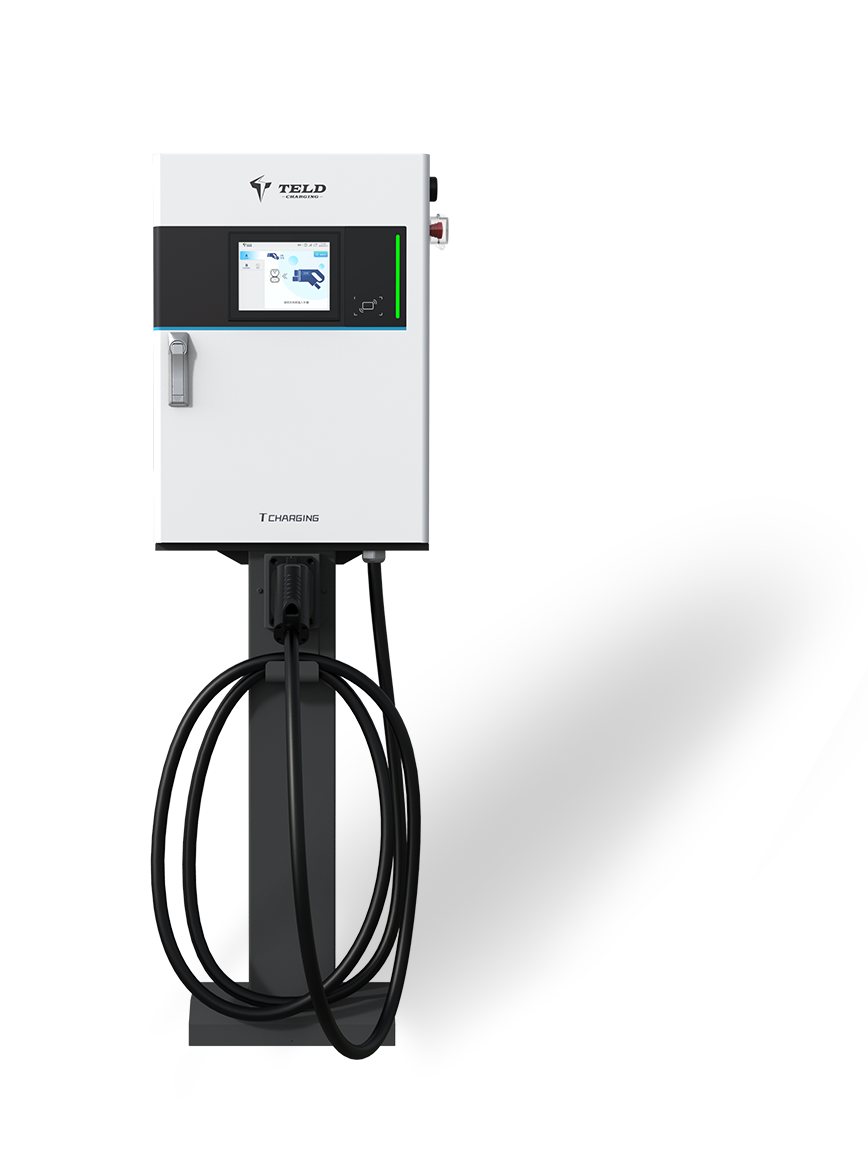

TELD TEC-DC1.0/30-CNANN
Integrated DC charger
30kW rated power
CCS2 charging connector
50Vdc–1000Vdc output voltage range
125A maximum current
5m cable length, including inside part
7” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Designed for outdoor placement
Remote fault diagnosis and remote restart
Suited For
Public service charging and workplace charging stations requiring a compact 30kW DC charging solution for electric buses, large electric buses and passenger electric vehicles.
Type: TEC-DC1.0/30-CNANN
Rated Power: 30kW
Input Voltage: 400Vac ±15%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 125A
Charge Connector: CCS2 × 1
Cable Length: 5m, including inside part
Display: 7” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 40kW MODEL
TELD TEC-DC1.0/40-CNANN
Integrated DC charger
40kW rated power
CCS2 charging connector
50Vdc–1000Vdc output voltage range
125A maximum current
5m cable length, including inside part
7” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Designed for outdoor placement
Remote fault diagnosis and remote restart
Suited For
Public service charging and workplace charging stations requiring a compact 40kW DC charging solution for electric buses, large electric buses and passenger electric vehicles.
Type: TEC-DC1.0/40-CNANN
Rated Power: 40kW
Input Voltage: 400Vac ±15%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 125A
Charge Connector: CCS2 × 1
Cable Length: 5m, including inside part
Display: 7” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 30kW MODEL

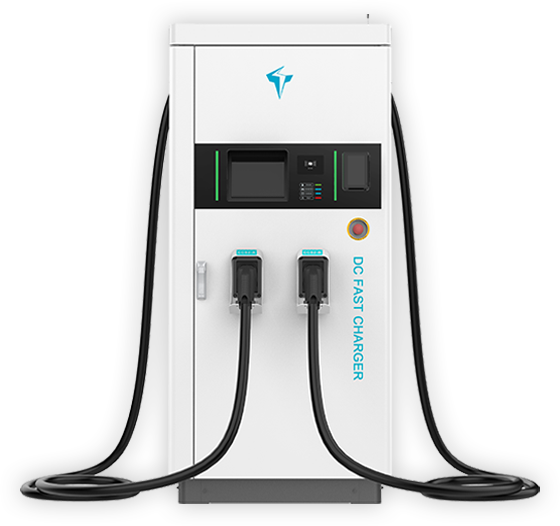

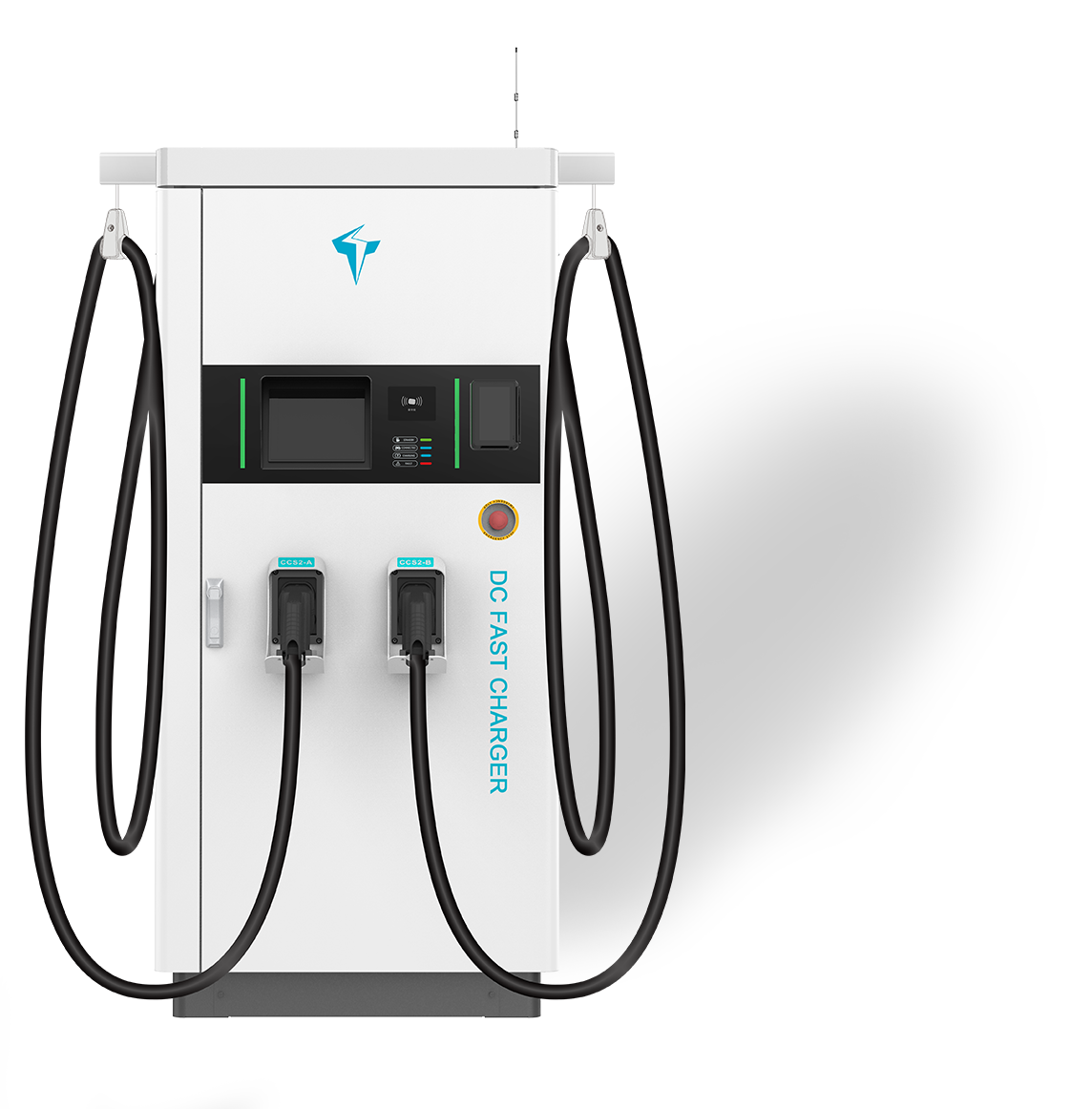

TELD TEC-DC1.0/80-CCANN
Integrated DC charger
80kW rated power
Dual CCS2 charging connectors
50Vdc–1000Vdc output voltage range
200A maximum current
5m cable length, including inside part
Optional cable management
8” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Designed for public service, public transport and fleet charging
Suited For
Public service charging, public transport charging and fleet charging sites requiring an 80kW DC fast charging solution with dual CCS2 connectors, OCPP 1.6J support, 4G/Ethernet communication and optional cable management.
Type: TEC-DC1.0/80-CCANN
Rated Power: 80kW
Input Voltage: 400Vac ±10%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 200A
Charge Connector: CCS2 × 2
Cable Length: 5m, including inside part
Cable Management: Optional
Display: 8” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 120kW MODEL
CLICK TO VIEW 160kW MODEL
TELD TEC-DC1.0/120-CCANN
Integrated DC charger
120kW rated power
Dual CCS2 charging connectors
50Vdc–1000Vdc output voltage range
200A maximum current
5m cable length, including inside part
Optional cable management
8” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Designed for public service, public transport and fleet charging
Suited For
Public service charging, public transport charging and fleet charging sites requiring a 120kW DC fast charging solution with dual CCS2 connectors, OCPP 1.6J support, 4G/Ethernet communication and optional cable management.
Type: TEC-DC1.0/120-CCANN
Rated Power: 120kW
Input Voltage: 400Vac ±10%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 200A
Charge Connector: CCS2 × 2
Cable Length: 5m, including inside part
Cable Management: Optional
Display: 8” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 80kW MODEL
CLICK TO VIEW 160kW MODEL
TELD TEC-DC1.0/160-CCANN
Integrated DC charger
160kW rated power
Dual CCS2 charging connectors
50Vdc–1000Vdc output voltage range
200A maximum current
5m cable length, including inside part
Optional cable management
8” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Designed for public service, public transport and fleet charging
Suited For
Public service charging, public transport charging and fleet charging sites requiring a 160kW DC fast charging solution with dual CCS2 connectors, OCPP 1.6J support, 4G/Ethernet communication and optional cable management.
Type: TEC-DC1.0/160-CCANN
Rated Power: 120kW
Input Voltage: 400Vac ±10%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: 200A
Charge Connector: CCS2 × 2
Cable Length: 5m, including inside part
Cable Management: Optional
Display: 8” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 80kW MODEL
CLICK TO VIEW 120kW MODEL

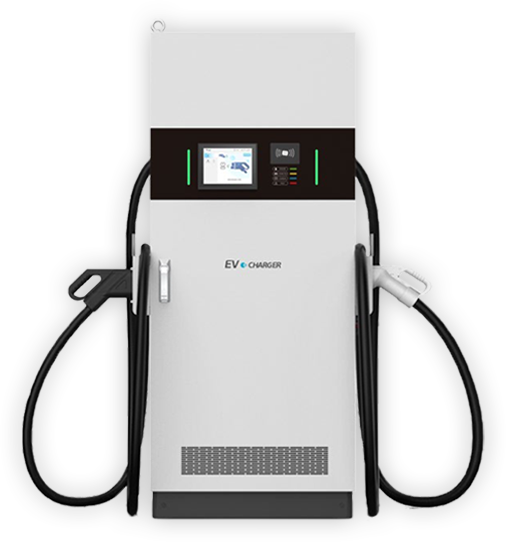

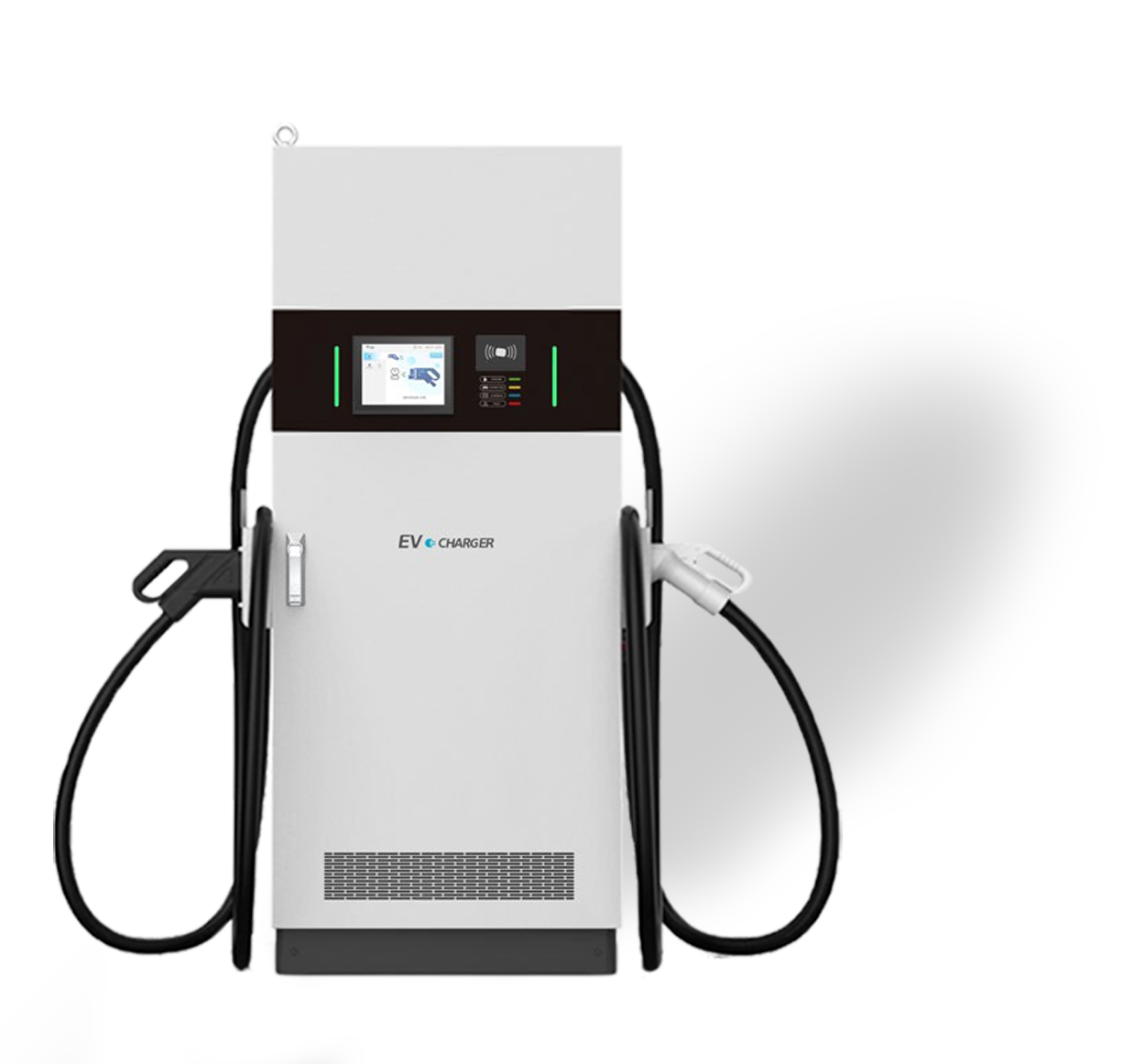

TELD TCDZ-DC1000/120
Integrated DC charger
120kW rated power
GB/T + CCS2 charging connector support
50Vdc–1000Vdc output voltage range
GB/T 250A / CCS2 250A maximum current
5m cable length
7” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Capable of charging both GB/T and IEC standard vehicles
Designed for public service, public
transport and fleet charging
Suited For
Public service charging, public transport charging and fleet charging sites requiring a 120kW integrated DC fast charger capable of supporting both GB/T and IEC standard vehicles.
Type: TCDZ-DC1000/120
Rated Power: 120kW
Input Voltage: 380Vac ±15%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: GB/T 250A / CCS2 250A
Charge Connector: GB/T + CCS2
Cable Length: 5m
Display: 7” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 160kW MODEL
TELD TCDZ-DC1000/160
Integrated DC charger
160kW rated power
GB/T + CCS2 charging connector support
50Vdc–1000Vdc output voltage range
GB/T 250A / CCS2 250A maximum current
5m cable length
7” LCD screen
Standard 4G/Ethernet communication
OCPP 1.6J platform support
Peak efficiency ≥95%
Capable of charging both GB/T and IEC standard vehicles
Designed for public service, public
transport and fleet charging
Suited For
Public service charging, public transport charging and fleet charging sites requiring a 160kW integrated DC fast charger capable of supporting both GB/T and IEC standard vehicles.
Type: TCDZ-DC1000/160
Rated Power: 160kW
Input Voltage: 380Vac ±15%
Output Voltage: 50Vdc–1000Vdc
Maximum Current: GB/T 250A / CCS2 250A
Charge Connector: GB/T + CCS2
Cable Length: 5m
Display: 7” LCD screen
Communication: 4G / Ethernet
Platform Protocol: OCPP 1.6J
IP Rating: IP54
Cooling: Air cooling
CLICK TO VIEW FULL SPEC SHEET
CLICK TO VIEW 120kW MODEL
The products shown here represent selected TELD EV charging solutions available through YUBRIDGE. Additional models and configurations may be available
depending on your site requirements. Contact us to discuss your project or request more product information.
